Fold-line cracking is a common quality concern in corrugated boxes. It usually becomes visible after folding, when the liner splits, exposes the fibers underneath, or develops cracks along the crease.
The cause is not always obvious. Corrugated board construction, raw material and fiber quality, creasing settings, moisture content, and environmental conditions can all influence how the board behaves during folding.
In this case study, a customer came to Vigor Packaging after corrugated mailer boxes produced by a previous supplier developed visible cracking along the fold lines. We improved the result by adjusting the creasing width and conditioning the board moisture before converting.
While the actual project involved a corrugated mailer box, the troubleshooting principles discussed below apply more broadly to many types of corrugated boxes.
Quick Answer: Fold-line cracking in corrugated boxes can result from a mismatch between the board and the converting conditions. In this project, we improved the problem by increasing the creasing width and conditioning the board moisture before converting. Other cases may require changes to creasing depth, board construction, liner and fluting specifications, raw material selection, or storage conditions.
Case Study at a Glance
| Item | Project Details |
|---|---|

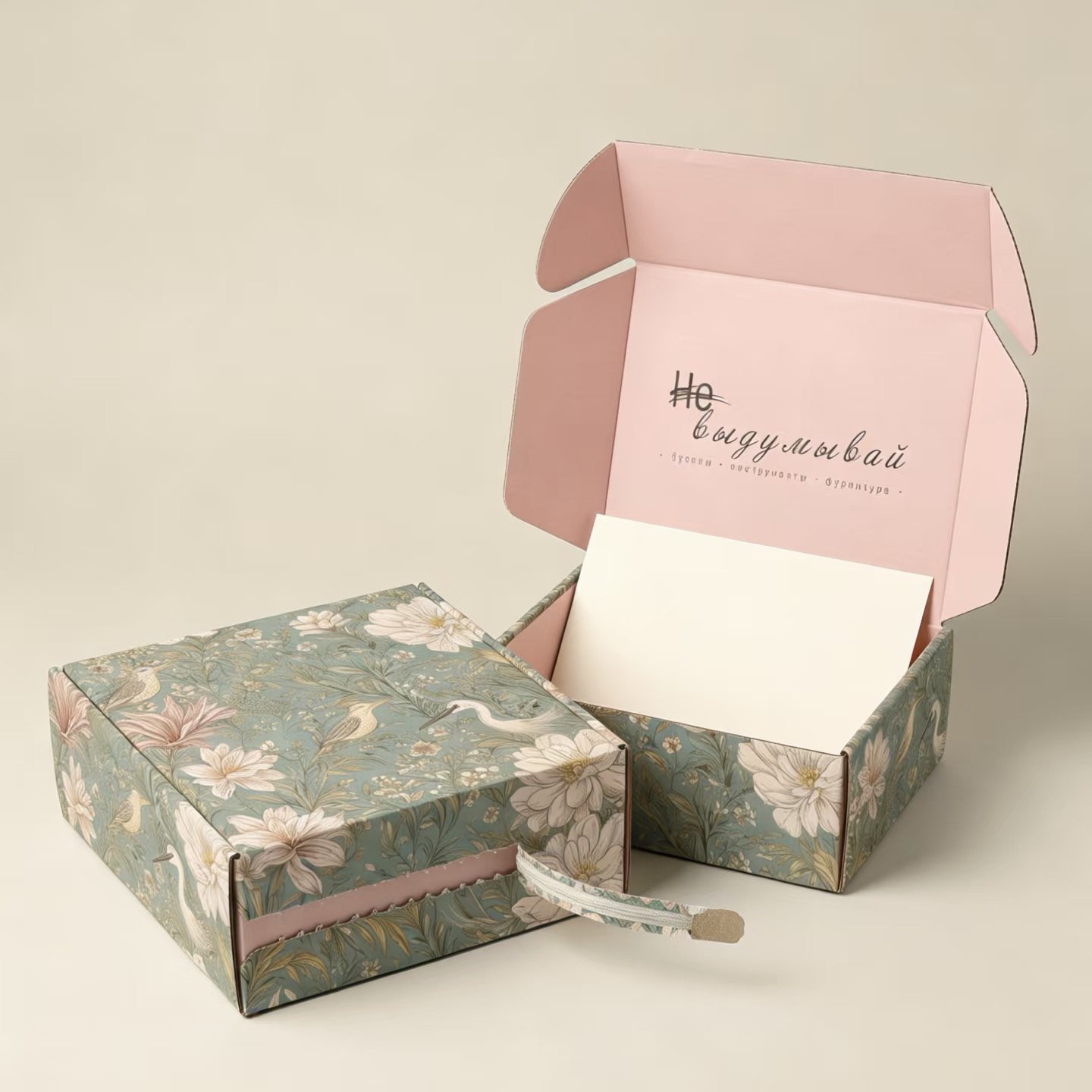

| Packaging Type | Corrugated mailer box |
| Problem | Visible cracking along fold/crease lines on boxes produced by a previous supplier |
| Our Assessment | The creasing configuration and board moisture condition could be optimized |
| Adjustment 1 | Increased the creasing width |
| Adjustment 2 | Conditioned the board moisture before converting |
| Result | Fold-line performance improved substantially and the finished production met the customer's requirements |
| Broader Application | The same diagnostic approach can be applied to other corrugated box structures with fold-line cracking |
The Problem: Cracking Along the Fold Lines
The customer had previously ordered corrugated mailer boxes from another manufacturer. After the boxes were folded into shape, visible cracking appeared along some of the crease lines.
Because corrugated boxes often contain multiple structural folds, cracking can become particularly noticeable after assembly and affect the appearance of the finished packaging.
Rather than assuming that the problem was simply caused by poor-quality paper, we evaluated the relationship between the corrugated board and the creasing process.
Our assessment indicated that two production variables could be improved: the space available for the board to deform around the crease and the moisture condition of the paperboard.
How We Improved the Fold Lines
1. Increasing the Creasing Width
Corrugated board needs sufficient space to compress and deform when it is folded.
If the creasing area is too narrow for the thickness and construction of the board, folding stress can become concentrated within a small area. This increases the risk of the liner splitting along the crease.
For this project, we increased the creasing width to better accommodate the corrugated structure.
It is important to distinguish creasing width from creasing depth. A deeper crease is not necessarily better. Excessive pressure or depth can damage the liner or over-compress the corrugated structure before folding.
The goal is therefore not to create the deepest possible crease, but to match the creasing configuration to the actual board.
For more information about how cutting and creasing work together in packaging production, see our Die Cutting for Packaging guide.
2. Conditioning the Board Moisture
Paper fibers become less flexible when the board is excessively dry. This can make the liner more susceptible to cracking when it is compressed and folded.
For this project, we also adjusted the moisture condition of the corrugated board before converting.
Maintaining a more suitable moisture level helped the paper tolerate the deformation created during creasing and folding.
This does not mean that more moisture is always better. Excessive moisture can introduce other problems, including dimensional instability and deformation.
The objective is controlled moisture conditioning so that the board enters the converting process in an appropriate state.
The Result
After adjusting the creasing width and board moisture condition, the fold-line performance of the corrugated mailer boxes improved substantially.
The finished mass-production boxes met the customer’s requirements and resolved the quality concern that had led them to seek another packaging supplier.
This project also demonstrated an important point:
Fold-line cracking is not necessarily caused by the paper alone. The interaction between the material, board structure and converting process needs to be considered together.
What Else Can Cause Fold-Line Cracking?
The adjustments above relate specifically to this project. Other corrugated boxes may crack for different reasons.
| Possible Factor | How It Can Affect Folding | What to Check |
|---|---|---|
| Creasing width too narrow | Concentrates folding stress within a small area of the liner | Creasing width relative to board thickness and structure |
| Creasing too deep | Can damage the liner or excessively compress the corrugated structure before folding | Creasing depth and production pressure |
| Poorly matched liner and fluting papers | An unsuitable paper combination can reduce folding performance | Grammage and mechanical properties of the liners and fluting medium |
| Raw material and fiber quality | Papers with stronger, longer fibers generally tolerate demanding folds better | Virgin/recycled fiber composition and paper strength |
| Low board moisture | Dry paper fibers become less flexible and more susceptible to cracking | Board condition before converting |
| Dry climate or storage conditions | Corrugated board can lose moisture before production | Seasonal climate, storage humidity and conditioning |
| Unsuitable board construction | Flute type, thickness or paper combination may not suit the required fold | Complete corrugated-board specification |
Raw Material and Fiber Quality Matter
Paper grammage alone does not determine how well a corrugated board will fold.
The type and quality of the fibers used to manufacture the liner paper can also affect its resistance to cracking.
Virgin paper fibers are generally longer and have undergone less processing than recycled fibers. Longer, stronger fibers can provide better fiber bonding and mechanical strength, helping the liner tolerate the stresses created around demanding folds.
Recycled fibers, particularly after repeated recycling cycles, tend to become shorter and may have different bonding characteristics. Depending on the paper grade and formulation, this can make some recycled papers more susceptible to cracking under demanding creasing and folding conditions.
However, this does not mean that recycled paper automatically causes fold-line cracking or that virgin-fiber paper is always necessary.
High-quality recycled paper can perform well when its strength, moisture condition and board construction are appropriate for the packaging.
When cracking resistance is particularly important, raw material and fiber quality should therefore be considered alongside grammage, rather than selecting paper based on grammage alone.
Liner and Fluting Papers Need to Be Properly Matched
Corrugated board should also be evaluated as a complete structure.
The outer liner, inner liner and fluting medium need to work together during creasing and folding.
In some board constructions, if the face or inner liner is relatively light compared with the fluting medium, it may be less able to tolerate the localized stress created around a fold.
However, there is no universal rule that:
liner grammage lower than fluting grammage = cracking
Paper grade, fiber composition, strength, moisture condition and flute structure all influence performance.
This is why simply specifying the total grammage of a corrugated board does not provide a complete picture of its folding performance.
Dry Conditions Can Change Board Performance
Paper-based materials exchange moisture with the surrounding environment.
During dry seasons or prolonged storage in low-humidity conditions, corrugated board can lose moisture and become less flexible.
This means that the same corrugated-board specification may not behave identically under different environmental conditions.
If a box that previously folded well suddenly begins to crack, board moisture and storage conditions should therefore be investigated before changing the entire material specification.
A Note About Digital-Cut Samples
For corrugated packaging, a digitally cut structural sample does not always reproduce exactly the same crease quality as mass production.
Digital cutting or sample-making equipment may use different creasing tools, pressure and forming conditions from production die-cutting equipment. On some corrugated or thick paperboards, the prototype may therefore show more visible cracking around a fold.
This is a general production consideration and did not occur as part of the customer case described above.
It also does not mean that cracking on a prototype should simply be ignored.
Digital samples are highly useful for evaluating:
- dimensions and box structure
- product fit
- artwork position
- opening and closing
- assembly
- overall appearance
However, when evaluating the final crease quality of corrugated packaging, the supplier should also consider the production die, creasing configuration, material condition and mass-production equipment.
Therefore:
Cracking on a digitally cut sample does not automatically mean the same cracking will occur in mass production—but neither should a supplier simply assume that it will disappear.
The reason for the cracking should still be evaluated before production.
How We Diagnose Fold-Line Cracking
Because similar-looking cracks can have different causes, troubleshooting should begin with the material and failure condition rather than immediately changing one production setting.
| What to Check | What We Look For |
|---|---|
| Crack Location | Whether cracking occurs consistently on particular folds or throughout the box |
| Board Construction | Flute type, thickness and whether the board suits the required folding structure |
| Paper Combination | Outer liner, inner liner and fluting-medium specifications |
| Raw Material / Fiber Quality | Whether the liner provides sufficient strength and folding resistance |
| Creasing Configuration | Width and depth relative to the actual corrugated board |
| Board Moisture | Whether the paper has become excessively dry |
| Storage & Climate | Whether environmental conditions have changed the board's moisture balance |
| Sampling Method | Whether the prototype and mass production use different creasing processes |
The appropriate solution should follow the diagnosis.
A narrow crease may need to be widened. An excessively deep crease may require less compression. Dry board may require controlled conditioning. A poorly matched board construction may require a different paper combination.
There is no single anti-cracking setting that works for every corrugated box.
What Packaging Buyers Can Learn from This Case
The most important lesson from this project is that fold-line cracking is a symptom, not the root cause.
Simply changing to heavier paper, increasing creasing pressure or adding moisture may increase cost without solving the actual problem.
For the corrugated mailer box in this case, adjusting the creasing width and board moisture condition was sufficient to achieve a satisfactory production result.
For another corrugated box, the correct solution might instead involve the liner and fluting combination, fiber quality, creasing depth, flute type or storage conditions.
If an existing box has a cracking problem, providing the supplier with photos of the affected folds, the actual box or sample, board specifications and structural requirements can be more useful than simply requesting “stronger paper.”
Frequently Asked Questions
Why does corrugated cardboard crack along fold lines?
Cracking occurs when the liner cannot tolerate the stress generated during creasing and folding. Possible causes include unsuitable creasing, low board moisture, material and fiber quality, board construction and poorly matched liner and fluting papers.
Is virgin-fiber paper less likely to crack than recycled paper?
In many demanding folding applications, paper made from longer and stronger virgin fibers can provide better resistance to cracking than paper containing heavily recycled and shortened fibers. However, fiber source alone does not determine performance. Paper grade, strength, moisture, grammage, board construction and creasing conditions also matter. High-quality recycled paper can perform well when properly specified.
Can increasing the creasing width prevent cracking?
For some corrugated-board structures, yes. A wider crease can provide more space for the board to compress and deform during folding, reducing concentrated stress on the liner. The appropriate width should be matched to the board rather than applied as a universal setting.
Can creasing too deeply cause cracking?
Yes. Excessive compression can weaken the liner or damage the corrugated structure before the box is folded. Increasing creasing pressure is therefore not always the correct solution to a cracking problem.
Why do corrugated boxes sometimes crack more during dry weather?
Paper can lose moisture in low-humidity environments. As the board becomes drier, its fibers may become less flexible, increasing the risk of cracking during folding. This is why seasonal climate and storage conditions can affect the performance of the same board specification.
Can the liner and fluting paper combination cause cracking?
It can contribute to the problem. If the liners and fluting medium are poorly matched in grammage or mechanical properties, the liner may have difficulty tolerating localized folding stress. The complete board construction should be evaluated rather than relying on total grammage alone.
Can a digitally cut sample crack even if mass production performs better?
Yes. Digital sample-making equipment may not reproduce exactly the same creasing tools, pressure and forming conditions used in production die cutting. However, the supplier should still investigate the cause rather than simply assuming that cracking visible on a prototype will disappear in mass production.
Experiencing Fold-Line Cracking With Your Corrugated Boxes?
Fold-line cracking can often be improved, but the correct solution depends on why the board is cracking.
Contact Vigor Packaging with photos of the affected folds, box dimensions, board specifications if available, and information about the existing packaging structure.
By evaluating the material, fiber quality, corrugated-board construction and converting process together, we can determine which factors should be adjusted before recommending a production solution.
